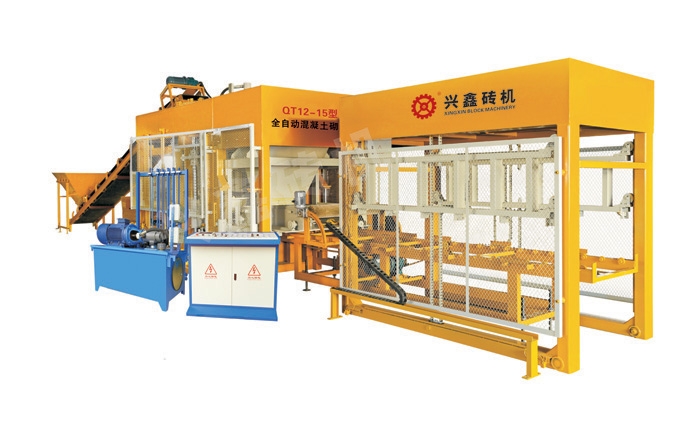

QT Series Multi-functional Fully Automatic Block Making Machine
As a “National Inspection-free Product”, Xingxin block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance.
Technical Charcteristic
1.Imported high-effect hydraulic proprotion system pure component(more efficient and energy conservation)
2.Imported intelligence PLC touch screen and pure electrical element (high automaticity and easy to operate)
3.Arch breaking type rapid feeding device(better feeding for multi-hole brick with better uniformity)
4.Extend type high efficient vibrotechnique (Forming production faster and with higher compactedness)
5.High-heart treatment special technoligy (to make the mould more durable and more firm )
Producers goods
Using smallrock,sand,stones,cement,can be heavy addition with fly-ash,slag,coal gangue,ceramsite,pearlite and etc many type or industrial Waste.
One machining with multiple uses,by changing mould it can produce all type of standard building blocks.
Multi-holes block and hollow block
Ceramsite heat preservation block
Composite heat preservation concrete block
The above production come with good heat preservation performance,and satisfy the national new energy conservation policy demand.
TECHNICAL PARAMETERS | |
Vibration Frequency | 3800-4500r/min |
Main machine weigh | 15000KG |
Dimension | 11500*4550*2800mm |
Capacity | 53.9KW |
Cycle Time | 15-20(S) |
Rated pressure | 31.5mpa |
Vibration force | 150KN |
Pallet size | 1350*880*30mm |
Vibration type | hydraulic vibration |
Stacking machine power | 3.7KW |
Block Specification | Size (mm) | Block Mould | pcs/mould | PCS/8Hours |
Hollow brick | 390*190*190 |
|
12 | 17280-23040 |
Porous block |
240*115*90 |
|
30 | 43200-57600 |
Solid brick | 240*115*51 |
|
63 | 93600-124800 |
Holland Brick | 200*100*60 |
|
42 | 60000 |
